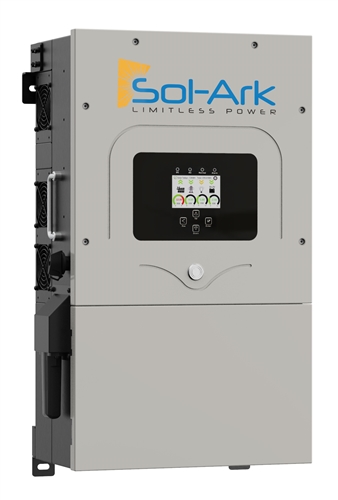

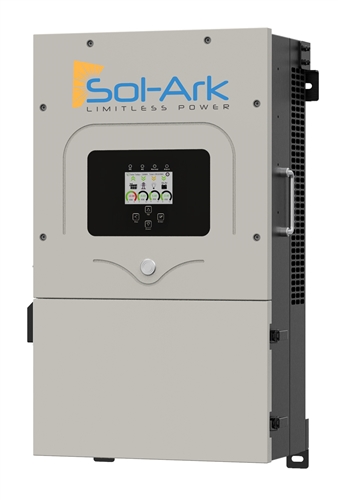

Sol-Ark 8K > 8,000 Watt 48 Volt All-In-One Solar Generator – Inverter
Roll over image to zoom in
$6,200.00
Helpful Hint with Sol-Ark hybrid inverters: Unlike most string inverters – Sol-Ark hybrid inverter solution will not have a complete power loss for a series string of modules if one of the panels goes bad (stops producing) *** so as long the total voltage of the remaining panel meets or exceeds the min MPPT voltage range of 150VDC.
Helpful Hint with Sol-Ark hybrid inverters: Unlike most string inverters – Sol-Ark hybrid inverter solution will not have a complete power loss for a series string of modules if one of the panels goes bad (stops producing) *** so as long the total voltage of the remaining panel meets or exceeds the min MPPT voltage range of 150VDC.
Specifications
| Max Allowed PV Power | 5,500W + 5,500W = 11,000W |
| Max PV Power Delivered to Battery & AC Outputs | 8,000W |
| Max DC voltage | 500V @ 18A, 450V @ 20A |
| MPPT voltage range | 150-425V |
| Starting Voltage | 125V |
| Number of MPPT | 2 |
| Max Solar Strings Per MPPT | 2 |
| Max DC Current per MPPT (Self Limiting) | 20A |
| Max AC Coupled Input (Micro/String Inverters) | 9,600W |
| Nominal AC Output Voltage | 120/240V/204V Split Phase |
| Peak Inverter Efficiency | 97.5% |
| Continuous AC power to Grid (On Grid) | 8000W 33.3A-L (240V) |
| Continuous AC power to Loads (Off-Grid) | 8000W 33.3A-L (240V) |
| Battery Type | Lead-Acid or Li-Ion |
| Nominal DC Input | 48V |
| Capacity | 50 – 2000Ah |
| Grid to Battery Charging Efficiency | 96.0% |
| Dimensions (H x W x D) | 30.0” x 18.30” x 10.00” |
| Weight | 78 lbs |
Product Features
- Next Generation Efficiency
3X Better! Only 4% losses vs. 14% in today’s battery based systems - Split Phase & Three Phase
Sol-Ark’s 8K pumps out power just like the grid, allowing you to power 120V/ 240V appliances - Grid-Tied, Hybrid, Off-Grid
Manages power from Solar, Battery, Grid, Load, and Generator simultaneously - Flexible
Sol-Ark is expandable from 5 to 36 (11 kW) solar panels and 0-32 batteries. - 5-Year Standard Warranty
10-Year extended warranty available - Warranty: 5 Years
